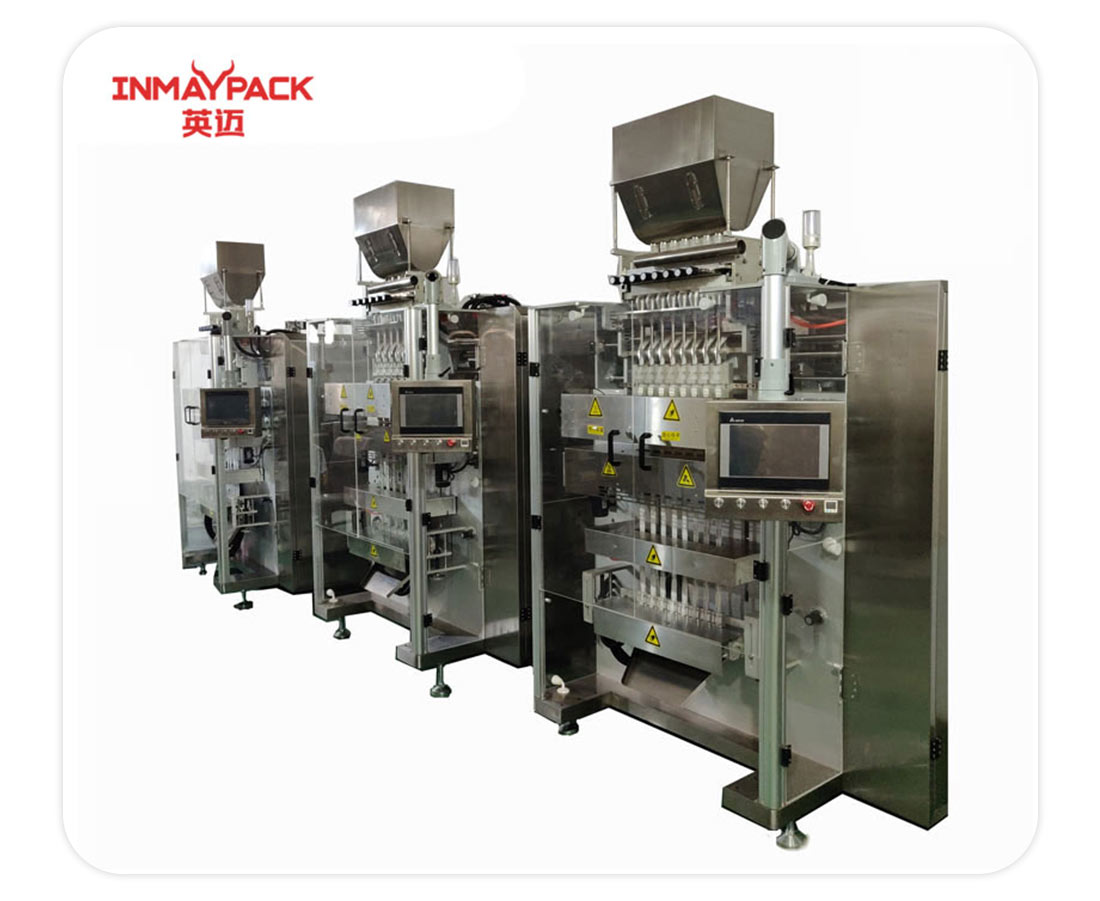

High Speed Multi Lane Sachet Packaging Machine

Use:

High Speed ​​Multi Lane Sachet Packaging Machine is an advanced high-speed multi-lane bag packaging machine that integrates a series of automated functions such as automatic feeding, metering, bag making, filling, sealing, date printing and product output. The machine can accurately handle packaging materials, form bags, and automatically fill products to ensure that the product quantity and sealing quality of each bag are consistent.

At the same time, it can automatically print the necessary production date and batch number on the bag to meet legal regulations and product traceability requirements. These features make the equipment widely used in industries such as food, medicine and cosmetics, improving production efficiency and packaging quality.

Main technical specifications:

Maximum packing :Width (mm) 750mm
Cutting the number of (vertical row):  6-10 lane
Maximum width packing material: 750mm;
Packaging capacity: 2-40ml measurement accuracy: ± 5%
Packing speed:  30-50 bags / min (single) total capacity of 280-480 packets / min.
Operating voltage :220V/60HZ single-phase 3.2KW
Horizontal cut off frequency:  up to 20-40 beats / min
Weight (kg):  1900kg
Dimensions (L * W * H):  1.3mX1.7mX2.5m
