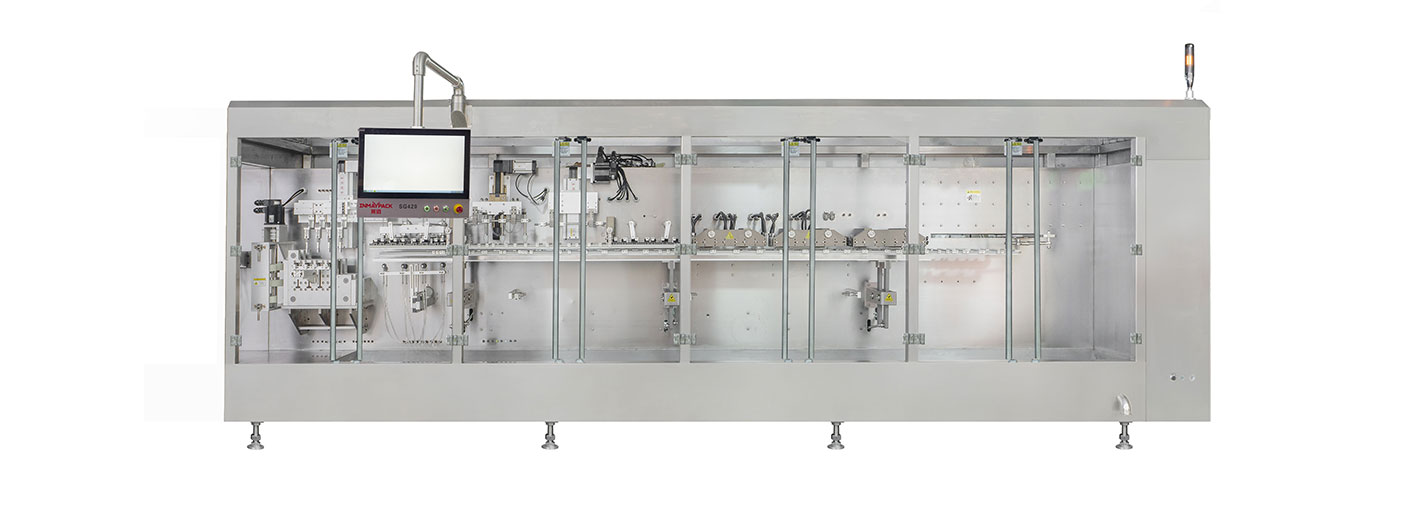

SG series packaging equipment adopts a simple design concept, its selected accessories can be 24-hour production operation, with mini- mum maintenance costs and easy-to-use features. It is highly desir- able for small batches when multi-specification packaging adjust- ments are required.
The equipment uses an integrated cabinet and a separate 15-inch Operation Panel, the electrical control is integrated in the rack. Use Huichuan District as the standard control system, or choose brands such as Beckhoff or Allan Bradley.
|
Equipment model |
SG210FE |
SG320FE |
SG320FED |
SG420FEQ |
SG540FED |
|
Mini bag size(mm) |
120×150 |
120×150 |
120×150 |
70×120 |
120×150 |
|
Max i bag size(mm) |
210×300 |
320×350 |
160+160×350 |
110×210 |
270+270×350 |
|
Bag volume range |
1500ml |
3000ml |
1000ml |
200ml |
3000ml |
|
Produ ction speed PPM |
50 |
40 |
100 |
160 |
80 |
|
Power consumption |
16KW |
16KW |
18KW |
30KW |
28KW |
|
Automatic adjustment bag width for the servo bag position adjustment module |
|
Automatic lubrication system for equipment |
|
Cooling device for strengthen the top seal |
|
BAG conveyor module for maglev guideway |
|
Production Management System (HMI) and industrial internet of things (IIOT)for on-line production monitoring and management of equipment (optional) |
|
Full servo version is available system-wide |
Shanghai Yingmai packaging technology is a high-tech enterprise integrating R & D, production, sales and service of automatic self-supporting bag packaging system. The automatic self-supporting bag packaging equipment is a packaging process system that enables the roll film bag making to form, fill and seal the finished self-supporting bag. It is mainly composed of uncoiler, bag making machine, filling system and sealing device.
The company takes the concept of "leading the development of China's independent bag packaging technology" as its corporate mission. At present, more than 40 patented technologies and software copyrights have been owned and applied for. The company's products have passed ISO 9001 international quality system certification, 14001 environmental management system certification and EU CE certification. In the field of self-supporting bag flexible packaging, it has domestic leading R & D and manufacturing capacity and leading technical advantages.
